ELEGANCE

Is the new elegant and secure overhead door by De Nardi. The exterior is covered with 1,0 mm thick sheet metal panels vertically disposed; on request it comes insulated and internal completed with okoumè panels of 6 mm. Painted with standard ral colours, with stove-enamelled polyester powder finish for maximum weatherpfoofing. The frame has a larger cross section of 30 mm (sometimes reinforced) for housing the rubber seal. Elegance comes supplied complete with Yale lock with protection defender, set-up for motor-drive unit, anti-fall system against the accidental breaking and anchoring rag bolts. Is delivered ready assembled for easy fitting and packed with polyethylene sheets.

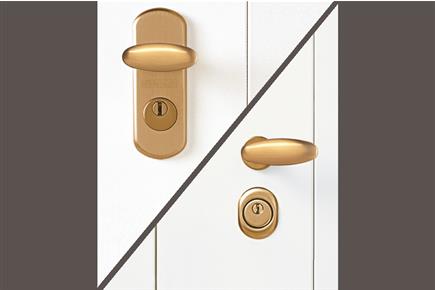

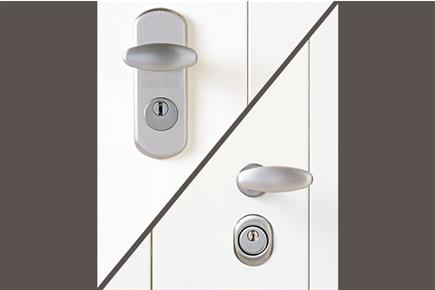

Handles

The coordinates, overhead doors and pedestrian door are three:

Natural aluminium Natural aluminium
Bronzed aluminium Bronzed aluminium

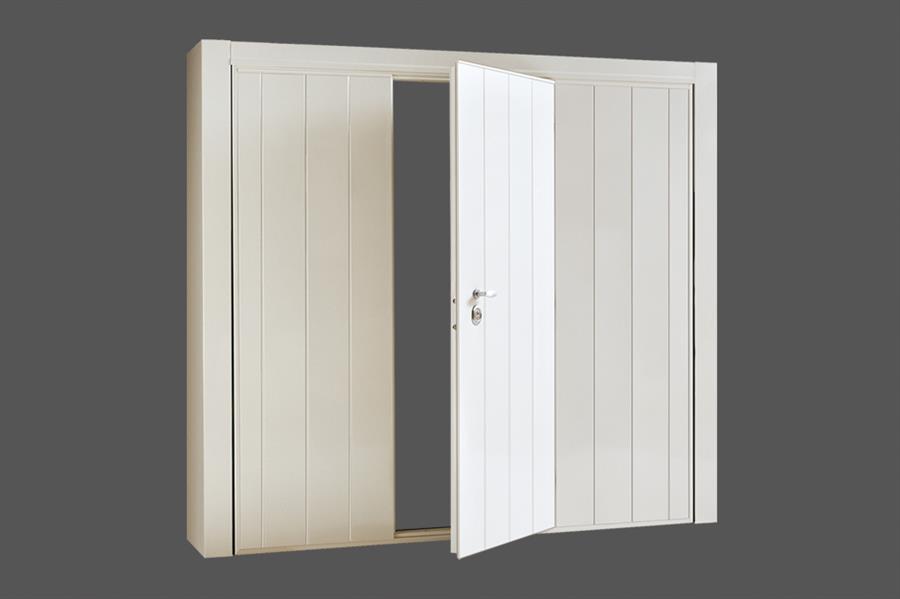

Pedestrian door

The pedestrian door is available for Classic-V and double aesthetics. The pedestrian door is supplied as standard with 3-point locking armoured lock and defender to protect the cylinder. The pedestrian door is available for Classic-V and double aesthetics. The pedestrian door is supplied as standard with 3-point locking armoured lock and defender to protect the cylinder.

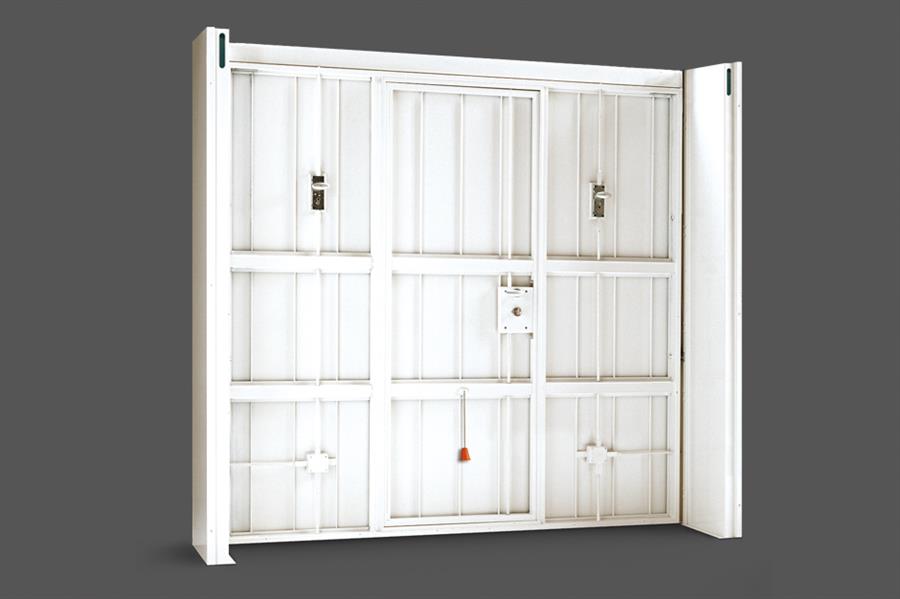

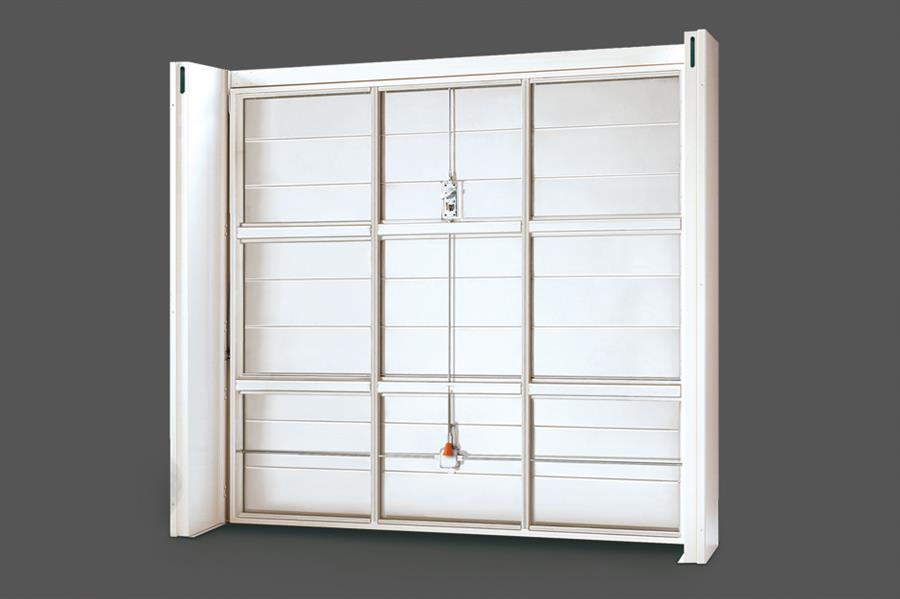

3-point locking

Side version, for overhead doors with pedestrian door Side version, for overhead doors with pedestrian door
Central version, for overhead door without pedestrian door Central version, for overhead door without pedestrian door

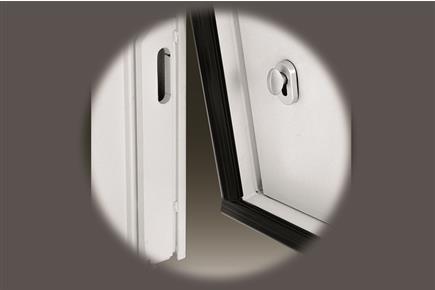

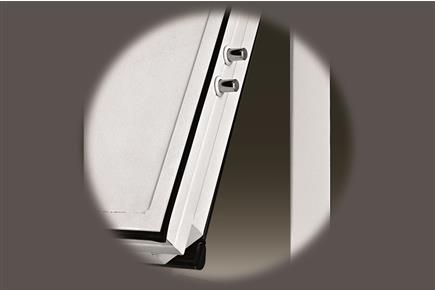

Electro motorized locks

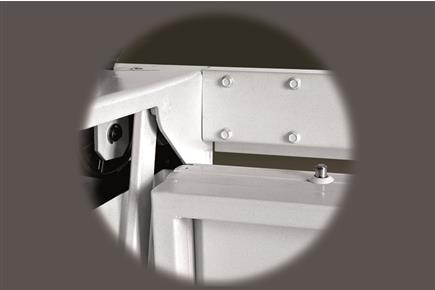

The closure of the door is ensured by n. 2 electro motorized locks that control n. 6 perimeter bolts in cemented steel. The closure of the door is ensured by n. 2 electro motorized locks that control n. 6 perimeter bolts in cemented steel.

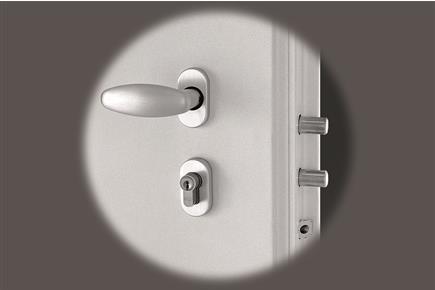

The closure of the pedestrian door is ensured by an armoured electro motorized door, comanding n. 4 cemented steel locking points, together with n. 5 fixed rostrums and n. 4 high resistance hinges. The closure of the pedestrian door is ensured by an armoured electro motorized door, comanding n. 4 cemented steel locking points, together with n. 5 fixed rostrums and n. 4 high resistance hinges.

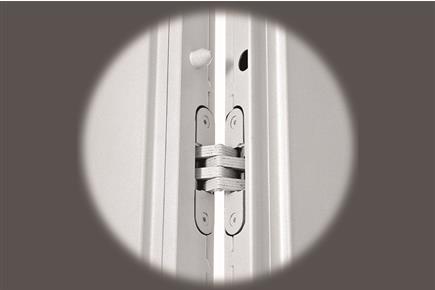

The pedestrian door is standard constructed, in a central position with hidden hinges of high resistance The pedestrian door is standard constructed, in a central position with hidden hinges of high resistance
The locks of the overhead and pedestrian door are always activated by a remote control; in case of power failure the easy release is through cylinder and/or pull The locks of the overhead and pedestrian door are always activated by a remote control; in case of power failure the easy release is through cylinder and/or pull

Aeration

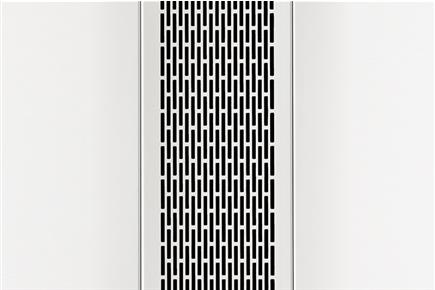

Classic - V Aesthetic version Classic - V Aesthetic version

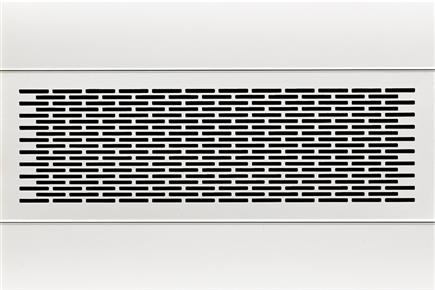

Classic - O Aesthetic version Classic - O Aesthetic version

Cover

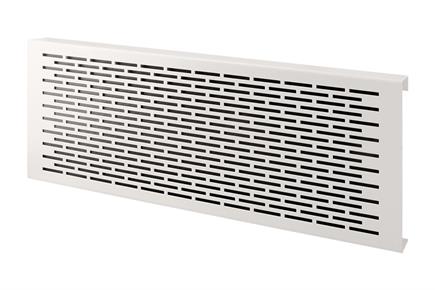

Perforated cover Perforated cover

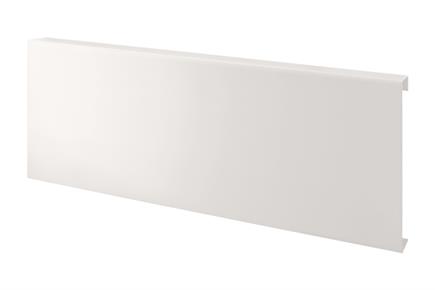

Blind cover Blind cover

Automation

AUTOMATION ON BOARD 24V: DE NARDI BY FAAC (RESIDENTIAL USE)

The “GEARMOTORS FAAC DN 24” are installed exclusively on overhead doors De Nardi. Two leading companies that provide a service to the highest of quality and safety. The innovative automation device De Nardi is the thinking mind of the whole system: it manages the speeds to reduce the mechanical stress of the motors and gates; it segnals the archievement of the working cycles limit to require the maintenance; it also deals with the management of a long series of functions, including: lock and unlock buttons, opening by a photocell, reversal of the motor controlled by the anti-crushing rib, photocells, buffer batteries for emergency operation in the event of a power failure.

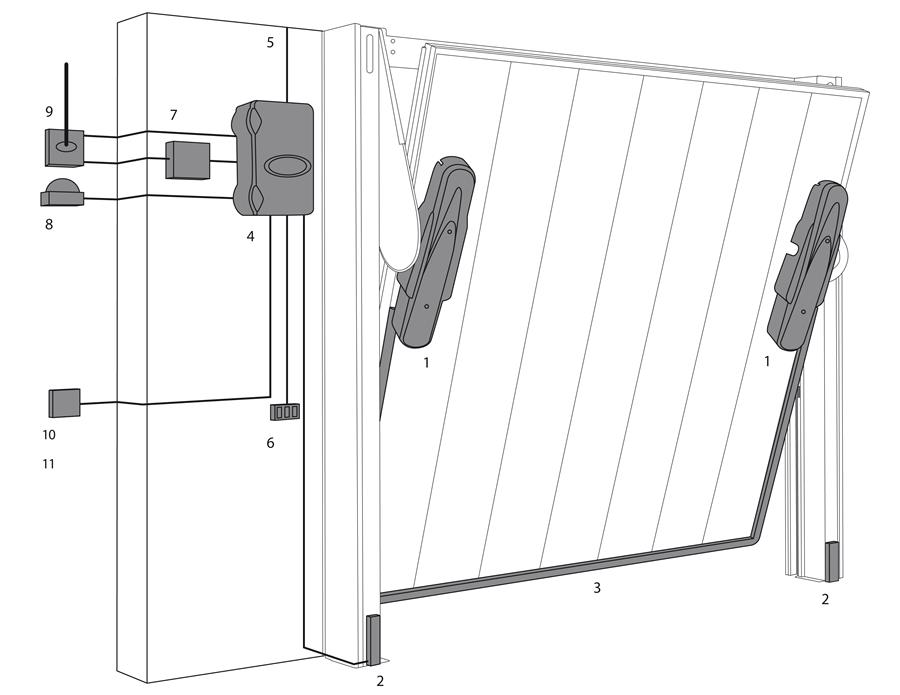

1 Motor block
2 Photocell
3 Mechanical rib
4 Automation device
5 Supply from breaker switch
6 Internal pushbutton
7 Radio receiver
8 Flashing light
9 Antenna
10 External key selector
11 Two-channel transmitter or four-channel transmitter

COMPONENTS

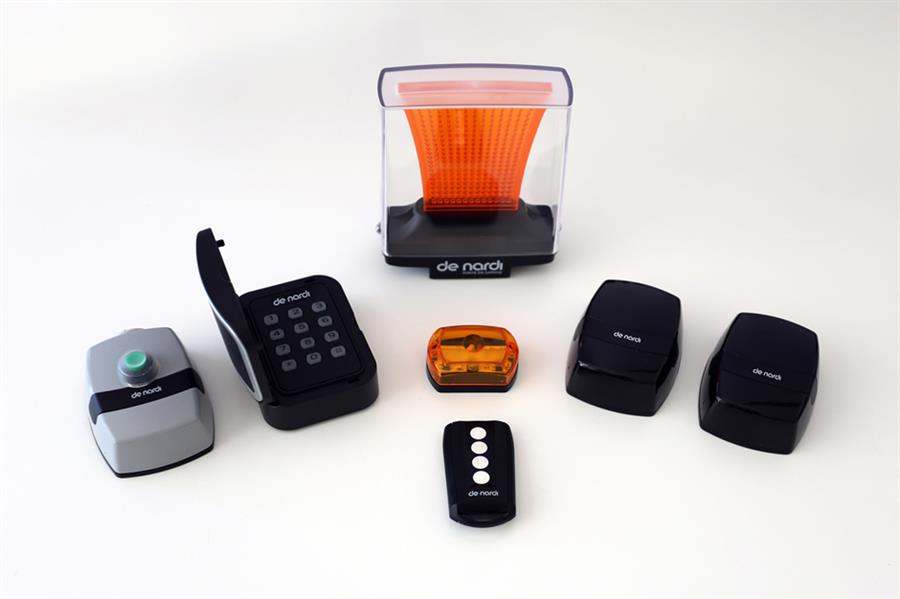

Wireless keypad digital combination, led wall flashing light, photocells, two-channel and four-photocells Wireless keypad digital combination, led wall flashing light, photocells, two-channel and four-photocells
Electronic control unit with built-in antenna and radio receiver Electronic control unit with built-in antenna and radio receiver

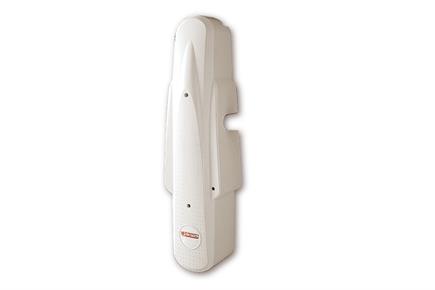

Engine carter Engine carter
