SHUTTERS

TUBULAR SHUTTER
TUBULAR (Pitch 12 cm)
Made in 18 mm ø weldless tube with small connecting rods, all obtained from galvanised steel strip.
TUBONDA
Made in 14 mm ø electrowelded pipe, it comes in two versions: simple and reinforced.
GRID
Made in 10 mm ø rod, it comes in two versions: simple and reinforced.
All the roller shutters are delivered complete with: slideways, bearings, shaft with springs, screws,anchoring elements and central or side lock.
Manual or electric operation. Rolling shutters are provided custom-tailored.

SHUTTER PLATE
This consists of galvanised steel elements (pitch 11,5 cm), ribbed for maximum strength, is available in 3 thicknesses:
8/10, 10/10 and 12/10. It comes complete with slideways, bearings, shaft with springs, screws, anchoring elements and central or side lock. Manual or electric operation. The plate shutter is supplied to measure.

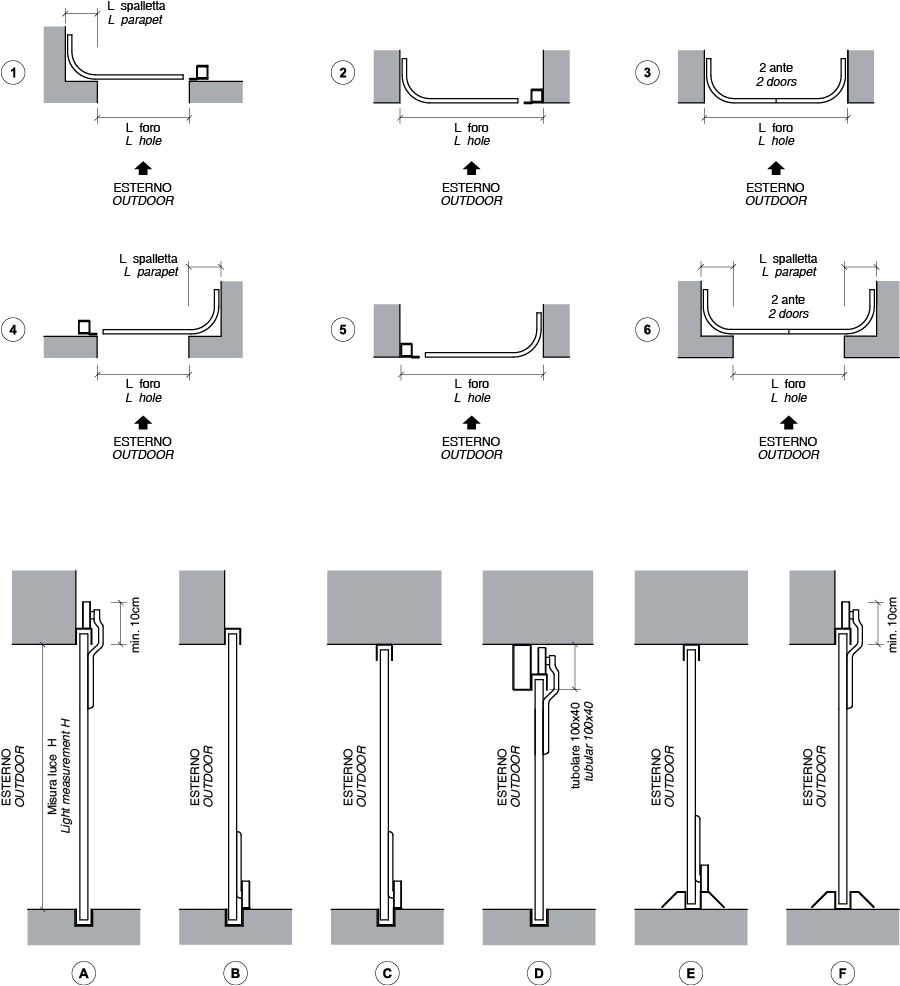

SHUTTER VERTICAL
This is made with linked vertical galvanised steel elements with hinged joints and is available in two thicknesses (8/10 and 10/10) and two versions for the sliding mechanism (top and bottom). It comes complete with slideways, ball bearings, anchoring rag bolts, recessed handle and lock. The vertical shutter is supplied to measure.

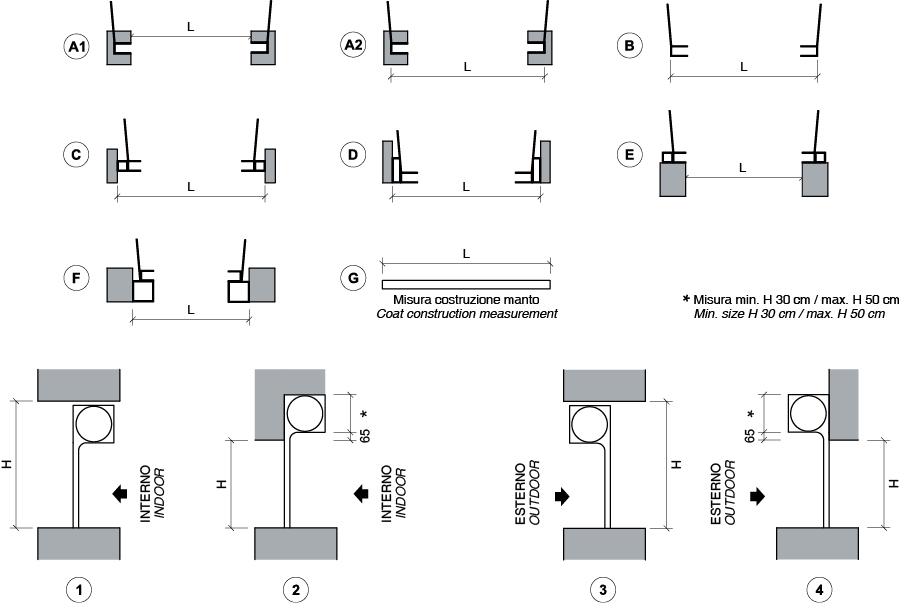

Dimensions

DIMENSIONS SHUTTER TUBULAR

Height hole: 200 / 250/ 300 / 350 / 400 cm.
Roller diameter Ø: 38 / 41 / 44 / 46 / 48 cm.

DIMENSION SHUTTER PLATE

Height hole: 200 / 250/ 300 / 350 / 400 cm.
Roller diameter Ø: 35 / 37 / 39 / 42 / 43 cm.

DIMENSION VERTICAL SHUTTER

Vertical shutter is supplied to measure of the client.
