ISOLMANT

Is a solid, reliable overhead door that combines De Nardi technology and experience. The door frame is made with an exclusive reinforced steel profile designed to house the rubber sealing strip. A pratical system of counterweights is inserted into the galvanised steel side uprights for easy, erfortless opening. The metal parts are galvanised and standard painted in a dark brown colour or ral-colours with stove-enamelled polyester powder finish for maximum weatherproofing. The door, the jambs and the head are covered in wood on the outside; the vertical panelling or the other coverings with special aesthetics, are done wih various types of wood, all guaranteed for durability by a long-term seasoning and a specific treatment. The wood is treated with fillers and resin-based paint varnishes in aqueous dispersion, thereby ensuring absolute non-toxicity for the indoor environment in order to safeguard the health of the inhabitants. The inside of the Pratic Legno ISOLMANT overhead door is covered with okoumè and frames; high density selfextinguishing polystyrene has been inserted between the external covering door and the internal panels to provide good sound-proofing and to improve heat insulation. The Pratic Legno ISOLMANT overhead door may be supplied with pedestrian door, glazed areas and, for even easier opening, with an electric motor. Pratic Legno ISOLMANT comes supplied complete with Yale type lock with handle, set-up for motor-drive unit, anti fall system against the accidental breaking of the cables, anchoring rag bolts; is delivered ready assembled for easy fitting and packed with polyethylene sheets.

Handles

The coordinated, overhead and pedestrian door are six:

Satined brass with plate Satined brass with plate
Satined steel brass with plate Satined steel brass with plate
Satined brass Satined brass
Satined steel brass Satined steel brass
Bronze-finish satined aluminium Bronze-finish satined aluminium
Natural satined aluminium Natural satined aluminium

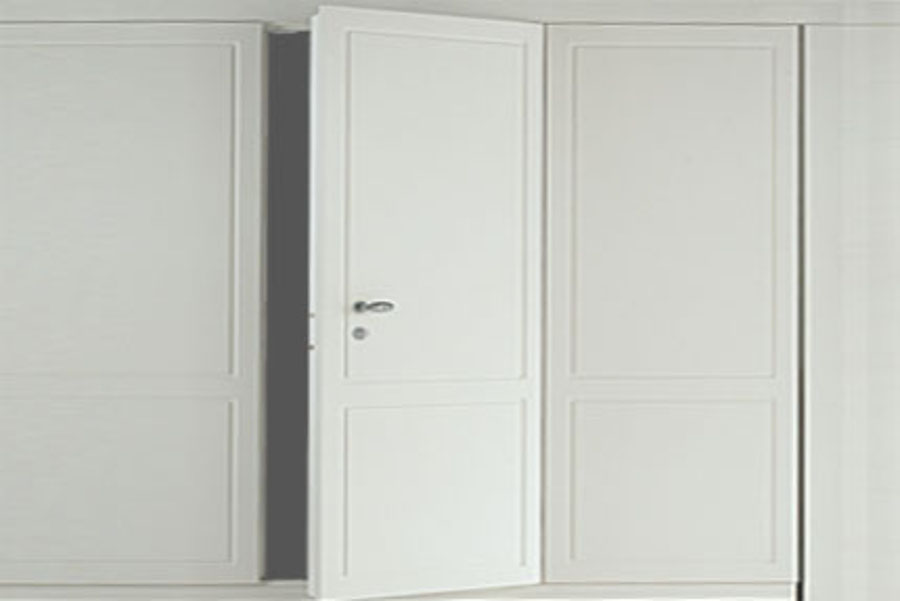

Pedestrian door

Version with 3 point locking system Version with 3 point locking system
Top locking Top locking
Central locking Central locking
Bottom locking Bottom locking

Aeration

Two models for the aeration: round outlets or rectangular louvred grilles in dark brown ABS.

Glazed fanlights

Fixed and openable

Automation

AUTOMATION ON BOARD 24V: DE NARDI by FAAC (RESIDENTIAL USE)

The “GEARMOTORS DN 24” are installed exclusively on overhead doors De Nardi. Two leading companies that provide a service to the highest of quality and safety. The innovative automation device De Nardi is the thinking mind of the whole system: it manages the speeds to reduce the mechanical stress of the motors and gates; it segnals the archievement of the working cycles limit to require the maintenance; it also deals with the management of a long series of functions, including: lock and unlock buttons, opening by a photocell, reversal of the motor controlled by the anti-crushing rib, photocells, buffer batteries for emergency operation in the event of a power failure.

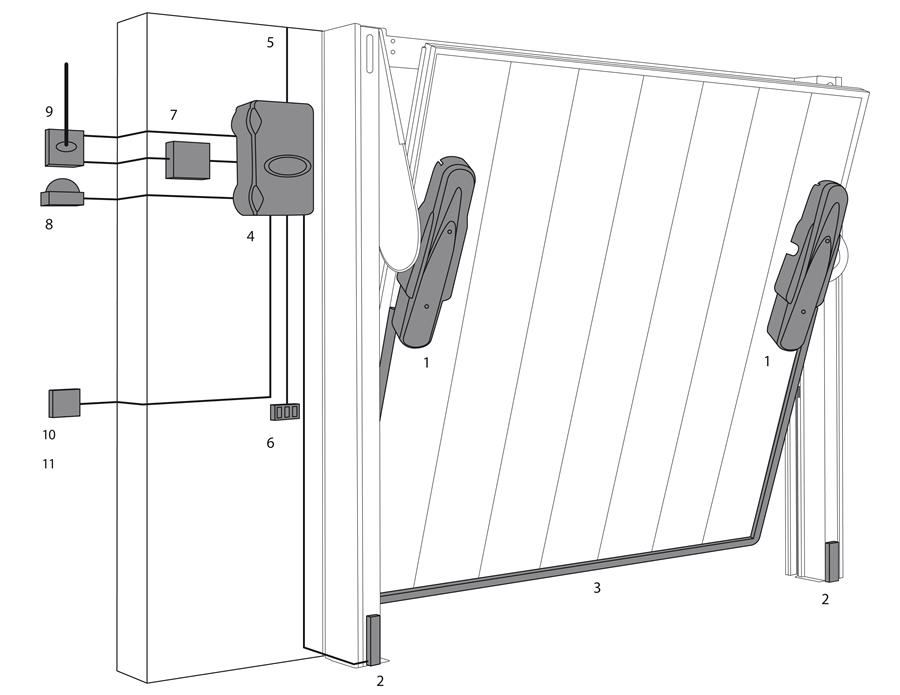

1 Motor block
2 Photocell
3 Mechanical rib
4 Automation device
5 Supply from breaker switch
6 Internal pushbutton
7 Radio receiver
8 Flashing light
9 Antenna
10 External key selector
11 Two-channel transmitter or four-channel transmitter

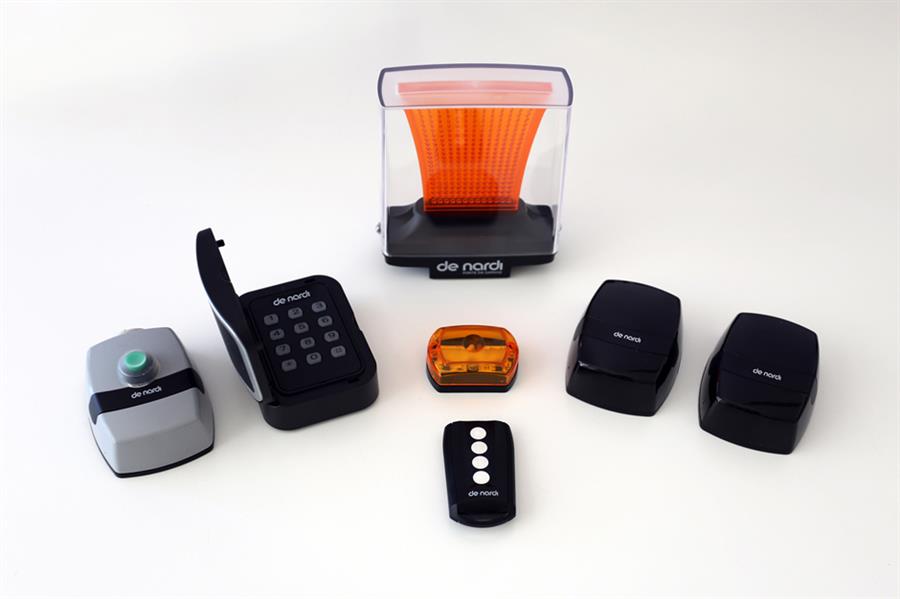

COMPONENTS

Wireless keypad digital combination, LED wall flashing light, photocells, two-channel and four-photocells Wireless keypad digital combination, LED wall flashing light, photocells, two-channel and four-photocells
Electronic control unit with built-in antenna and radio receiver Electronic control unit with built-in antenna and radio receiver
Engine carter Engine carter
