@MOTION

AUTOMATION @MOTION DE NARDI 2017 24V
Pratic 16 Model
Automation on board frame consisting of a 24V DC echocycle gearmotor with encoder, with a maximum power of 57W, for opening and closing door. A servant mechanism operated by a non-reversible gearmotor powered by 24V DC of the maximum absorved power of 45W, allows the first opening phase of the door and ensures an efficient closure. The new generation unit control, entirely developed by De Nardi, manages the gearmotors and the synchronism of the movements; it’s equipped with an intuitive diagnostic failure and can have the rescue buffer batteries for operation in absence of network electricity. All the electronic and electromechanical components described above, even in the presence of a pedestrian door, are located on the crossbeam and on one of the lateral uprights. The compactness of the components combined with the absence of return shafts and reaction arms, allow to the entire system to have no protrusions, ensuring a smooth passage and a design that is extremely clean and pleasant. The mobile door is supplied complete with anti-shock rubber to protect the 3 sides.
N.B. Not available for the non projecting version

SINGLE AUTOMATION @MOTION DE NARDI 2017 24V
Pratic Special Model
Automation on board frame consisting of a 24V DC echocycle gearmotor with encoder, with a maximum power of 57W, for opening and closing door. A servant mechanism operated by one of two non-reversible gearmotor powered by 24V DC of the maximum absorved power of 45W, allows the first opening phase of the door and ensures an efficient closure. The new generation unit control, entirely developed by De Nardi manages the gearmotors and the synchronism of the movements; it’s equipped with an intuitive diagnostic failure and can have the rescue buffer batteries for operation in absence of network electricity. All the electronic and eletromechanical components described above, even in the presence of a pedestrian door, are located on the crossbeam and on one of the lateral uprights. The compactness of the components combined with the absence of return shafts and reaction arms, allow to the entire system to have no protrusions, ensuring a smooth passage and a design that is extremely clean and pleasant. The mobile door is supplied complete with anti-crushing mechanical rib to protect the 3 sides.
N.B. Not available for the non projecting version and intensive condominium use.

DOUBLE AUTOMATION @MOTION DE NARDI 2017 24V
Pratic Special Model
Automation on board frame consisting of two 24V DC echocycle gearmotors with encoder, with a maximum power of 57W, for opening and closing door. A servant mechanism operated by two non-reversible gearmotors powered by 24V DC of the maximum absorved power of 45W, allows the first opening phase of the door and ensures an eccicient closure. The new generation unit control, entirely developed by De Nardi, manages the gearmotors and the syncronism of the movements; it’s equipped with an intuitive diagnostic failure and can have the rescue buffer batteries for operation in absence of network electricity. All the electronic and electromechanical components described above, even in the presence of a pedestrian door, are located on the crossbeam and on one of the lateral uprights. The compactness of the components combined with the absence of return shafts and reaction arms, allow to the entire system to have no protrusions, ensuring a smooth passage and a design that is extremely clean and pleasant. The mobile door is supplied complete with anti-crushing mechanical rib to protect the 3 sides.
N.B. Not available for the non projecting version and intensive condominium use.

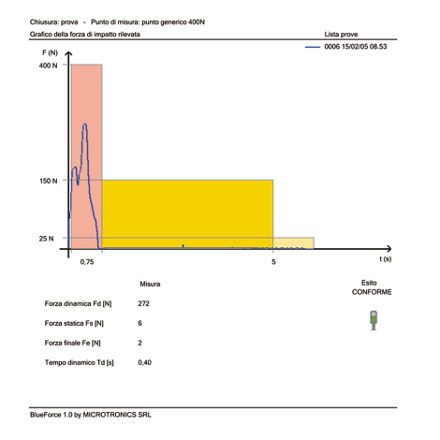

Limitation of forces























Un sistema elettronico regola la potenza dei motori, mantenendo le forze di impatto all’interno dei parametri di sicurezza.

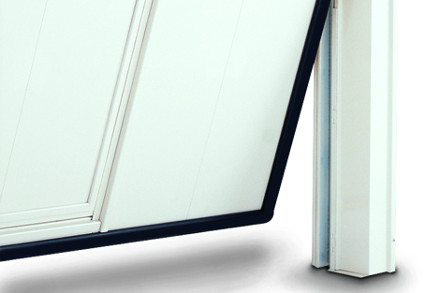

Mechanical safety edge













Model Pratic 16: anti-shock rubber to protect the 3 sides
Model Pratic Special: anti-crushing mechanical rib to protect the 3 sides.
