PRATIC

Model 12

12 is the overhead door with counterweights made in pressed, reinforced galvanised steel, with jambs of only 6 cm, suitable for measurements up to W. 250 cm. The door frame is made with an exclusive galvanised steel profile in which a rubber sealing strip can be housed. It comes ready assembled for easy fitting, complete with Yale type lock with handle and internal release, anti-fall device, cement counterweights, ropers and anchoring rag bolts .


Model 16

16 is the overhead door with counterweights made in pressed, reinforced galvanised steel, with jambs of only 8 cm, suitable for measure ments up to W 340 cm. The door frame is made with an exclusive galvanised steel profile in which a rubber sealing strip can be housed. It comes ready assembled for easy fitting, complete with Yale lock with handle and internal release, anti-fall device, cement counterweights, ropers and anchoring rag bolts.


Model SPECIAL

Special is the overhead door with counterweights made in pressed, reinforced galvanised steel, with jambs of 12-14-16 cm, suitable for measurements up to W 650 x H 280 cm. The door frame is made with an exclusive reinforced steel profile, 80 mm, designed to house the rubber sealing strip. It comes ready assembled for easy fitting, complete with Yale type lock with handle and internal release, set-up for motor-drive unit, anti-fall system against the accidental breaking of the cables, cement counterweights, ropers and anchoring rag bolts.

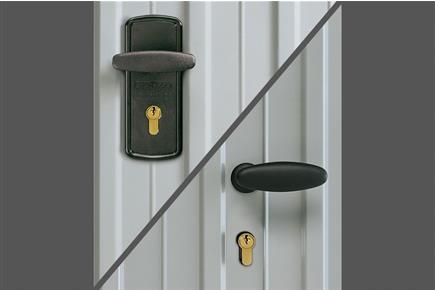

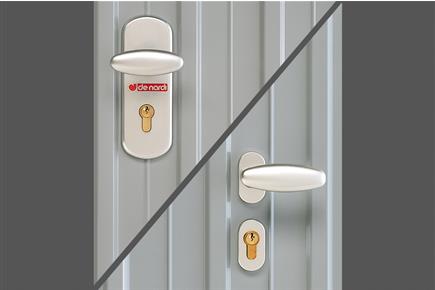

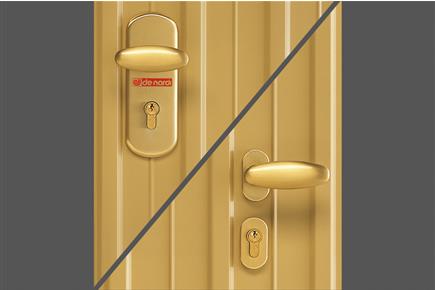

Handles

The coordinated, overhead and pedestrian door, are three:

Bronze-finish aluminium Bronze-finish aluminium
Aluminium Aluminium
PVC (excluded HORIZONTAL aesthetic) PVC (excluded HORIZONTAL aesthetic)

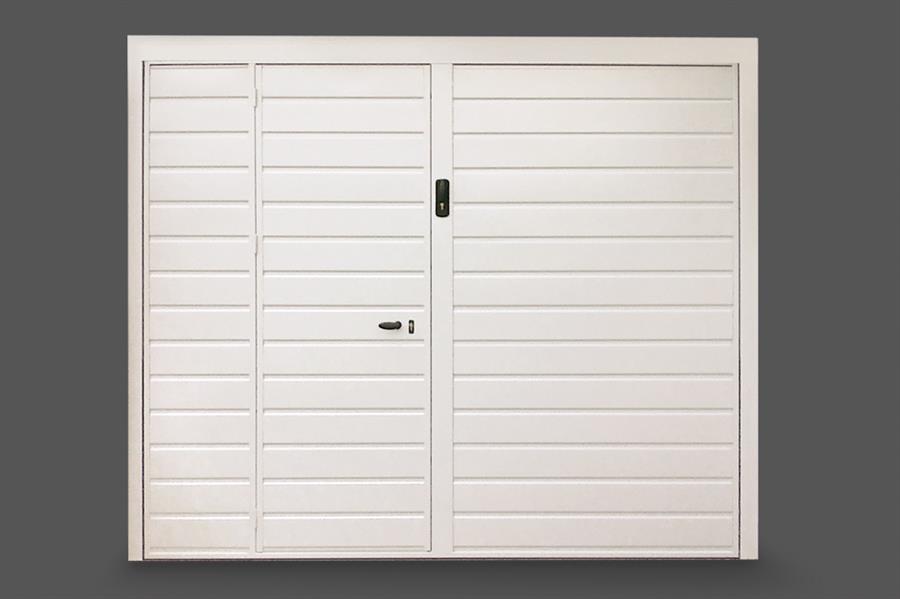

Pedestrian door

It’s possible to insert a pedestrian door in the overhead door, without altering the aesthetic appearance It’s possible to insert a pedestrian door in the overhead door, without altering the aesthetic appearance

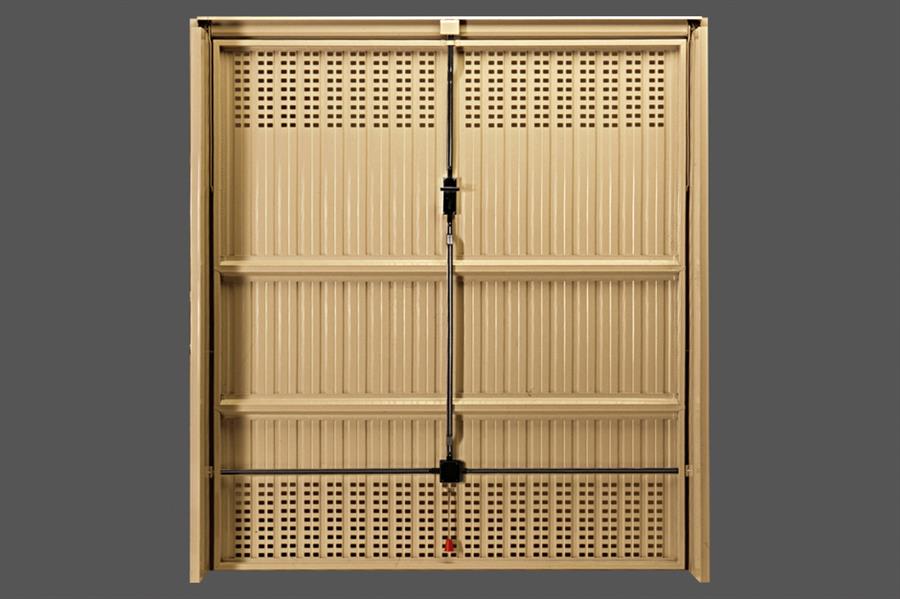

3-point locking

For a more security, it’s possible to have the lock with two side locks and the upper For a more security, it’s possible to have the lock with two side locks and the upper

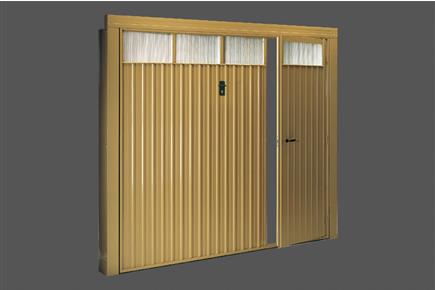

Glazed fanlights

It’s possible to insert glazed fanlights in the mantle, also with wasistas opening. They are supplied as standard with polycarbonate plates of 10 mm</br>excluded PRATIC 12 - 16 It’s possible to insert glazed fanlights in the mantle, also with wasistas opening. They are supplied as standard with polycarbonate plates of 10 mm
excluded PRATIC 12 - 16

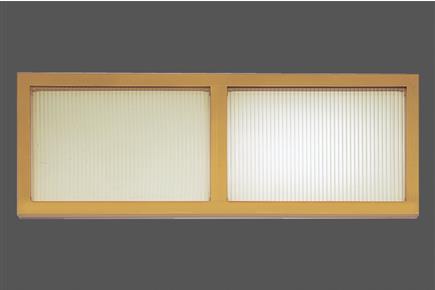

Above the overhead door can be a fixed glass fanlight or wasistas installed. It comes with multiwall polycarbonate sheets, on request (10 mm of thickness) and protective fingers Above the overhead door can be a fixed glass fanlight or wasistas installed. It comes with multiwall polycarbonate sheets, on request (10 mm of thickness) and protective fingers

Aeration

AERATION HOLES (only for VERTICAL aesthetic)

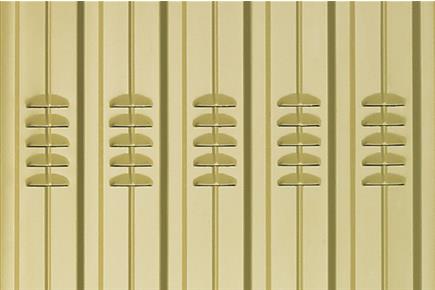

Hodded aeration holes positioned at the top and at the bottom Hodded aeration holes positioned at the top and at the bottom

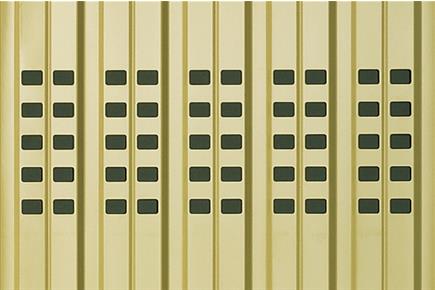

They are rectangular (24 x 18 mm) positioned at the top and at the bottom They are rectangular (24 x 18 mm) positioned at the top and at the bottom

PERFORATED LATERAL PANELS - 50 cm of width (only for vertical aesthetic)

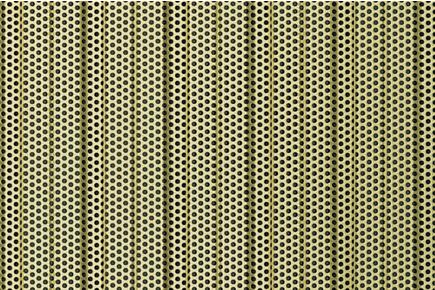

Holes Ø 6 mm (aeration 32% surface) Holes Ø 6 mm (aeration 32% surface)

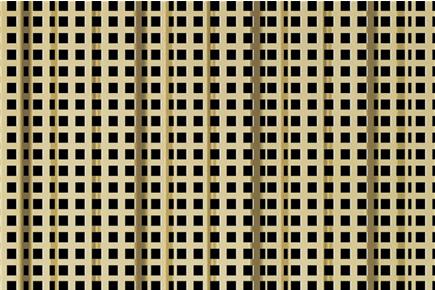

Square holes 10 x 10 mm (aeration 35% surface) Square holes 10 x 10 mm (aeration 35% surface)

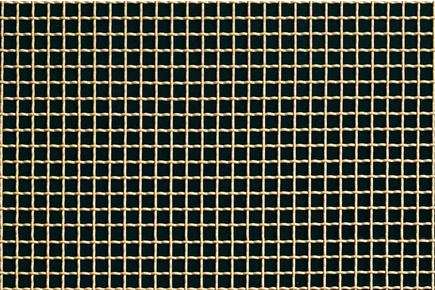

Square holes 30 x 30 mm, wire 3 mm (aeration 67% surface) Square holes 30 x 30 mm, wire 3 mm (aeration 67% surface)

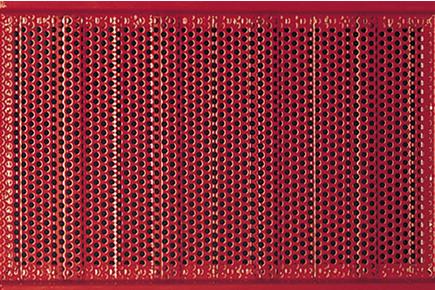

PERFORATED PANELS (only for HORIZONTAL aesthetics)

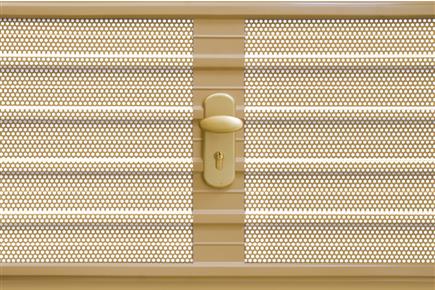

Upper position, 50 cm high, holes Ø 6 mm Upper position, 50 cm high, holes Ø 6 mm

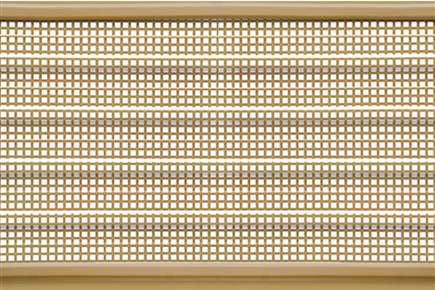

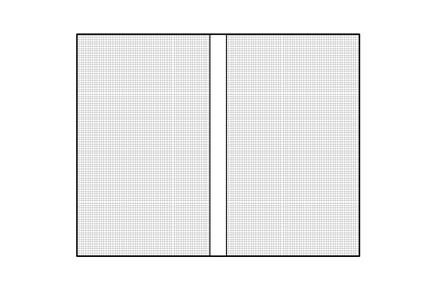

Upper position, 50 cm high, square holes 10 x 10 mm Upper position, 50 cm high, square holes 10 x 10 mm
Lower position, 50 cm high, holes Ø 6 mm Lower position, 50 cm high, holes Ø 6 mm
Lower position, 50 cm high square holes 10 x 10 mm Lower position, 50 cm high square holes 10 x 10 mm

CIRCULAR AERATION HOLES (only for EXTRA LARGE-O AESTHETIC)

Circular holes of Ø 24 mm Circular holes of Ø 24 mm

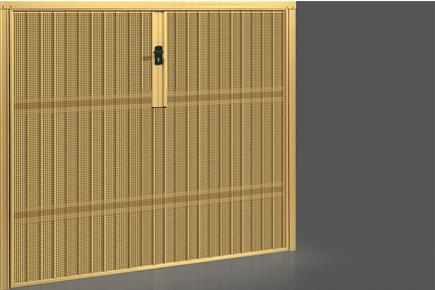

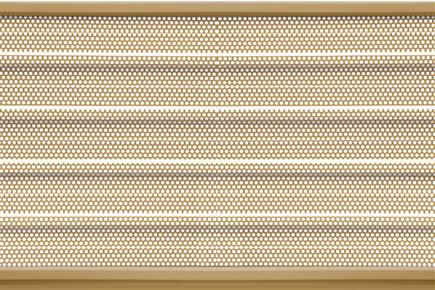

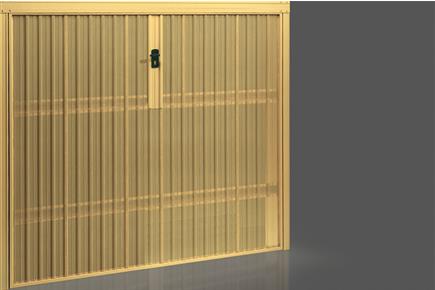

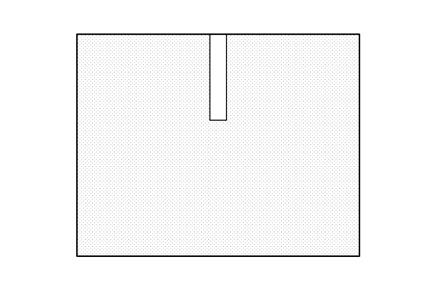

PERFORATED SURFACE Ø 6 mm (aeration 32% surface)

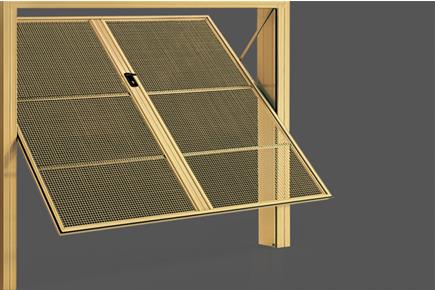

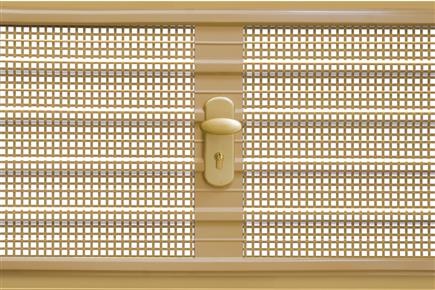

PERFORATED SURFACE WITH SQUARE HOLES 10x10 mm (aeration 35% surface)

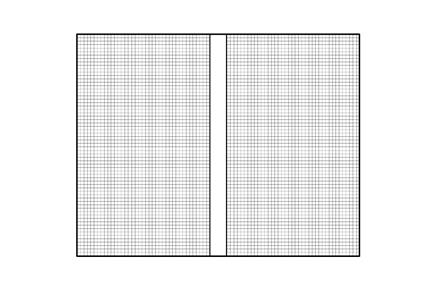

PERFORATED DOOR COVERING WITH SQUARE HOLES 30 x 30 mm (aeration 67% surface area)

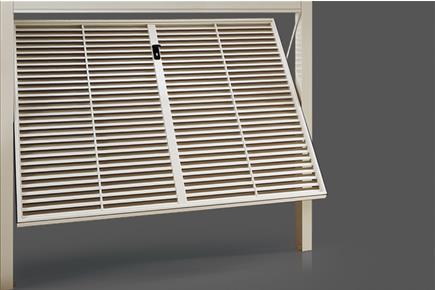

PERFORATED PLATED SURFACE (aeration 38% surface)

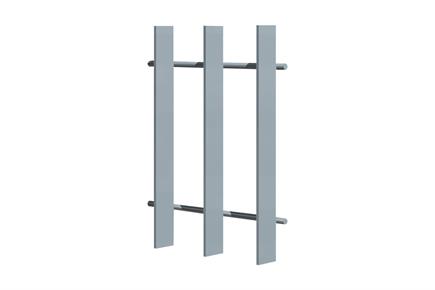

GRATING TYPE COVERING WITH 6,3 X 13,2 GRATING PITCH (aeration 85% surface area)

TOP COVER RIBBED

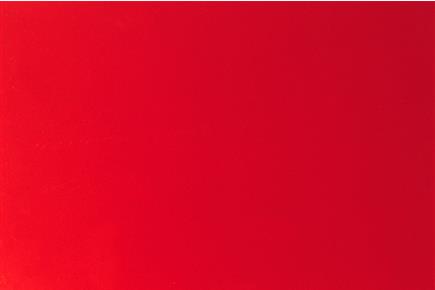

Pressed plate top cover (H. max 30 cm) Pressed plate top cover (H. max 30 cm)

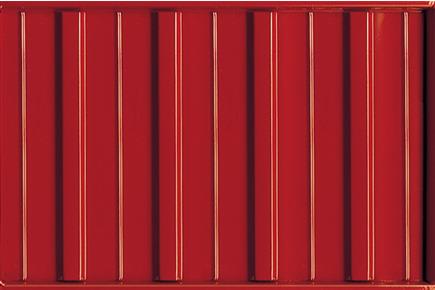

Corrugated sheet Corrugated sheet
Corrugated sheet, perforated Ø 6 mm (aeration 45% surface) Corrugated sheet, perforated Ø 6 mm (aeration 45% surface)

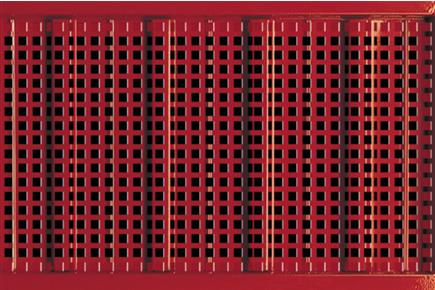

Corrugated perforated sheet 10 x 10 mm (aeration 76%) Corrugated perforated sheet 10 x 10 mm (aeration 76%)

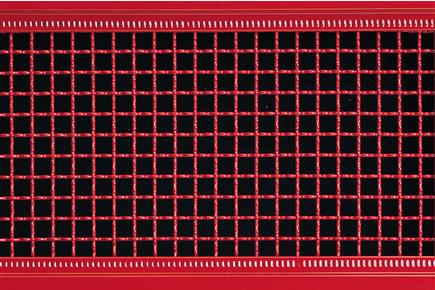

Square holes 30 x 30 mm, wire 3 mm (aeration 76%) Square holes 30 x 30 mm, wire 3 mm (aeration 76%)

Other personalizations

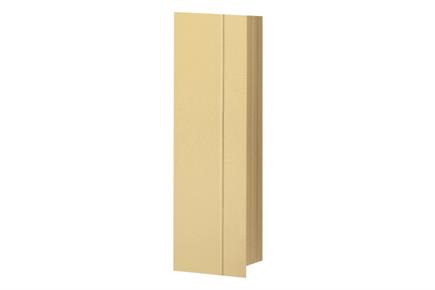

PERIMETER PROFILES

They are in stamped steel and can be supplied welded or detached They are in stamped steel and can be supplied welded or detached

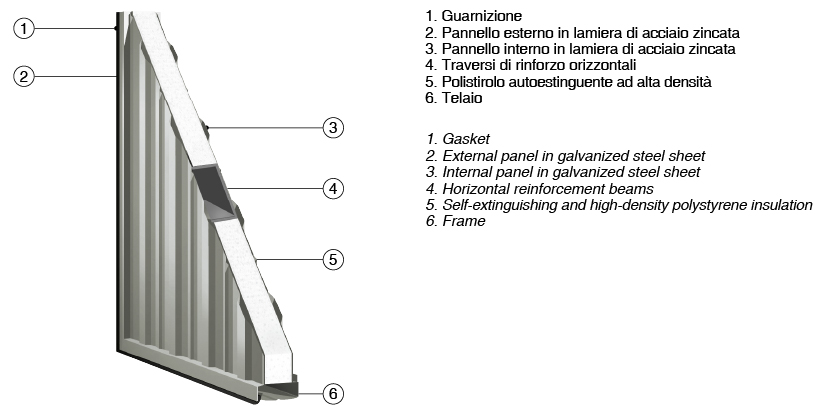

INSULATION

To improve heat and sound insulation, the covering may be insulated: a sheet of high-density polystyrene is inserted between the external and the internal ribbed plate.

Vertical aesthetic Vertical aesthetic

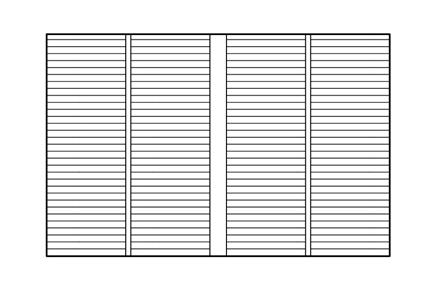

horizontal aesthetics horizontal aesthetics

THICKER COVERING

Thicker covering with 8/10 thick galvanised sheet steel.

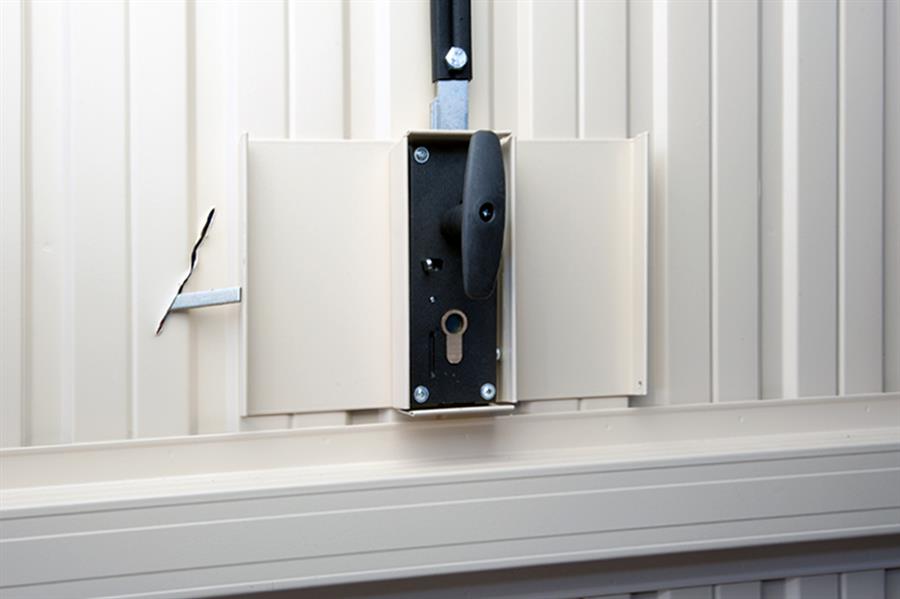

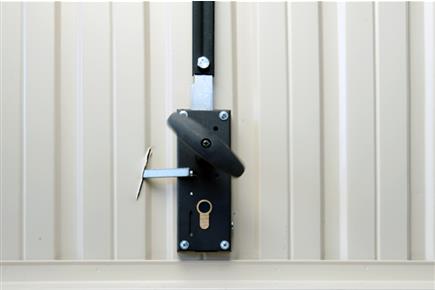

Lock Protection

To oppose the fast break of the overhead door typical of the condominium box and underground parking, we have prepared this simple kit to protect the lock. Lock protection is a simple lock protection kits; available in first delivery but also in post-sales, it is applied to any overhead door in corrugated sheet, with lock in accordance with the specifications indicated. The ideal product to recommend to apartment block administrators!
It is there, but you don’t see it because of the locking points or fixing srews which don’t alter the usual external view, making “invisible” the internal protection.

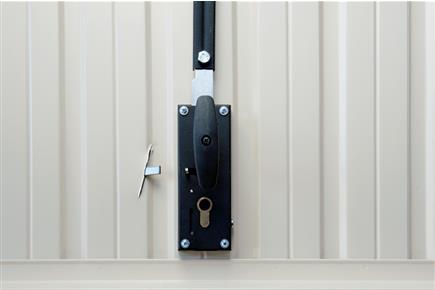

Standard overhead door: the intruder, after cutting of sheet metal, sees the release lever and opens the overhead door.

Overhead door equipped with Lock Protection: the intrusion is “removed” from the lock, he doesn’t see the release lever and therefore he doesn’t open the overhead door.

Automation

AUTOMAZIONE @MOTION

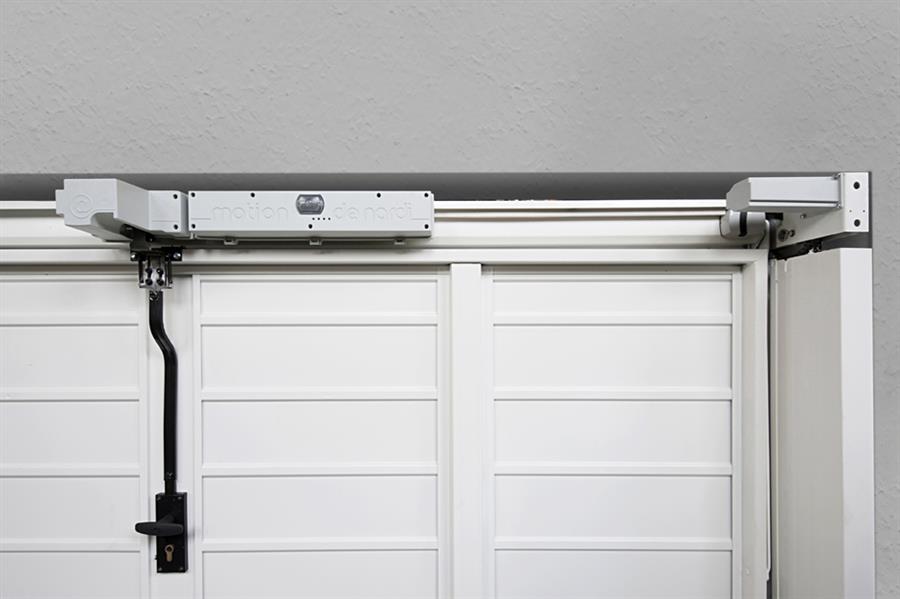

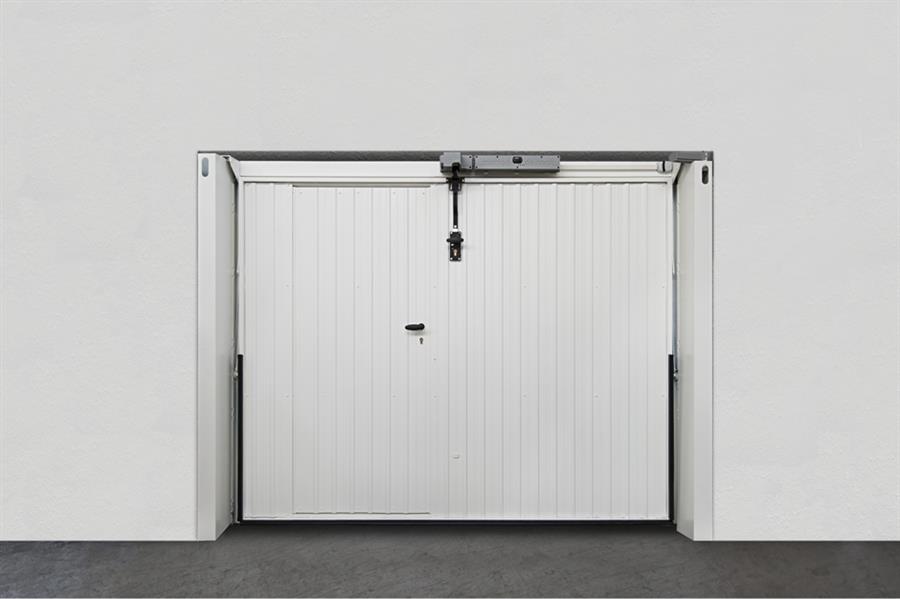

AUTOMATION @MOTION DE NARDI 2017 24V
Pratic 16 Model
Automation on board frame consisting of a 24V DC echocycle gearmotor with encoder, with a maximum power of 57W, for opening and closing door. A servant mechanism operated by a non-reversible gearmotor powered by 24V DC of the maximum absorved power of 45W, allows the first opening phase of the door and ensures an efficient closure. The new generation unit control, entirely developed by De Nardi, manages the gearmotors and the synchronism of the movements; it’s equipped with an intuitive diagnostic failure and can have the rescue buffer batteries for operation in absence of network electricity. All the electronic and electromechanical components described above, even in the presence of a pedestrian door, are located on the crossbeam and on one of the lateral uprights. The compactness of the components combined with the absence of return shafts and reaction arms, allow to the entire system to have no protrusions, ensuring a smooth passage and a design that is extremely clean and pleasant. The mobile door is supplied complete with anti-shock rubber to protect the 3 sides.
N.B. Not available for the non projecting version

SINGLE AUTOMATION @MOTION DE NARDI 2017 24V
Pratic Special Model
Automation on board frame consisting of a 24V DC echocycle gearmotor with encoder, with a maximum power of 57W, for opening and closing door. A servant mechanism operated by one of two non-reversible gearmotor powered by 24V DC of the maximum absorved power of 45W, allows the first opening phase of the door and ensures an efficient closure. The new generation unit control, entirely developed by De Nardi manages the gearmotors and the synchronism of the movements; it’s equipped with an intuitive diagnostic failure and can have the rescue buffer batteries for operation in absence of network electricity. All the electronic and eletromechanical components described above, even in the presence of a pedestrian door, are located on the crossbeam and on one of the lateral uprights. The compactness of the components combined with the absence of return shafts and reaction arms, allow to the entire system to have no protrusions, ensuring a smooth passage and a design that is extremely clean and pleasant. The mobile door is supplied complete with anti-crushing mechanical rib to protect the 3 sides.
N.B. Not available for the non projecting version and intensive condominium use.

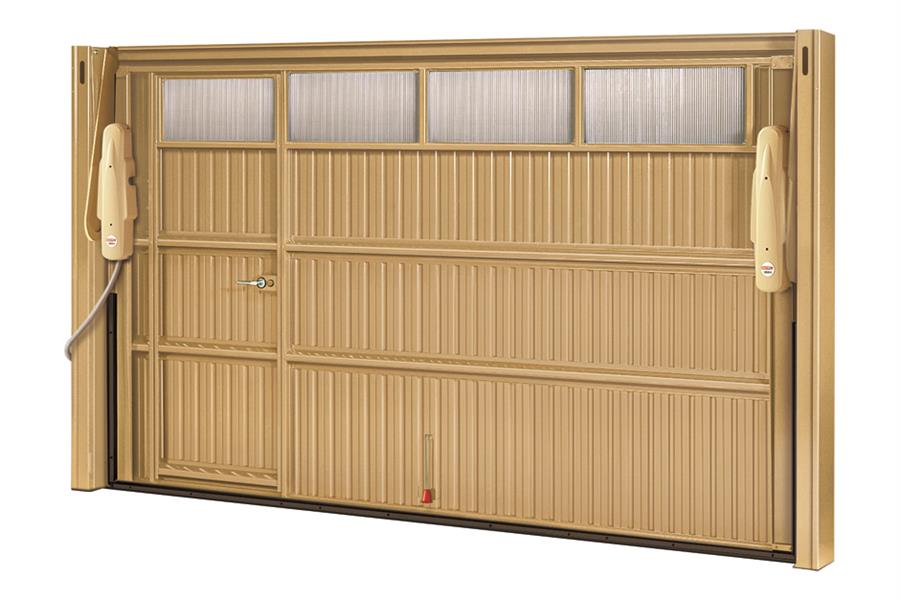

DOUBLE AUTOMATION @MOTION DE NARDI 2017 24V
Pratic Special Model
Automation on board frame consisting of two 24V DC echocycle gearmotors with encoder, with a maximum power of 57W, for opening and closing door. A servant mechanism operated by two non-reversible gearmotors powered by 24V DC of the maximum absorved power of 45W, allows the first opening phase of the door and ensures an eccicient closure. The new generation unit control, entirely developed by De Nardi, manages the gearmotors and the syncronism of the movements; it’s equipped with an intuitive diagnostic failure and can have the rescue buffer batteries for operation in absence of network electricity. All the electronic and electromechanical components described above, even in the presence of a pedestrian door, are located on the crossbeam and on one of the lateral uprights. The compactness of the components combined with the absence of return shafts and reaction arms, allow to the entire system to have no protrusions, ensuring a smooth passage and a design that is extremely clean and pleasant. The mobile door is supplied complete with anti-crushing mechanical rib to protect the 3 sides.
N.B. Not available for the non projecting version and intensive condominium use.

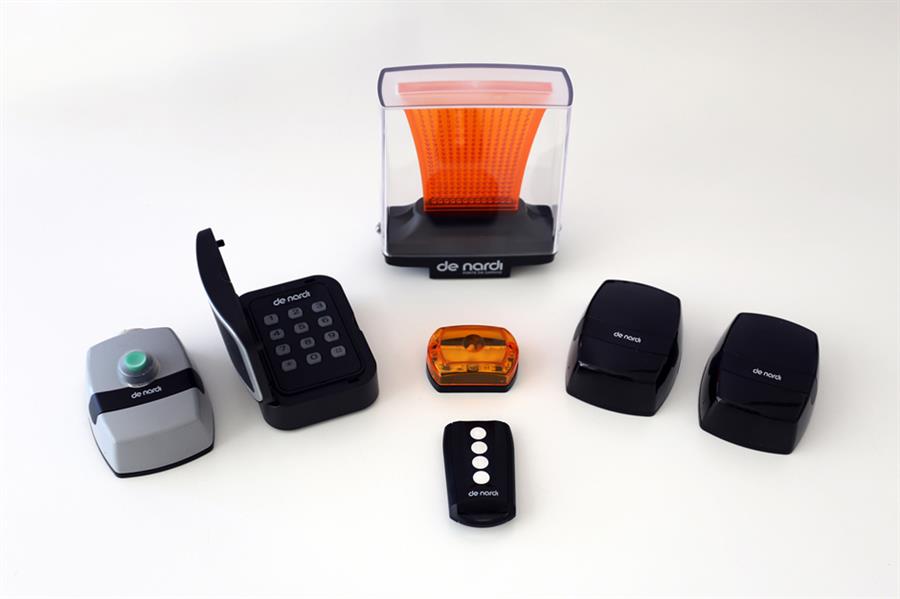

Wireless keypad digital combination, led wall flashing light, photocells, two-channel and four-photocells Wireless keypad digital combination, led wall flashing light, photocells, two-channel and four-photocells

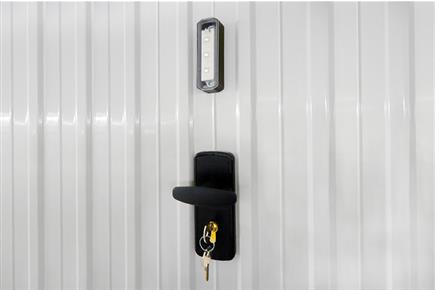

Lampeggiatore LED a bordo manto Lampeggiatore LED a bordo manto

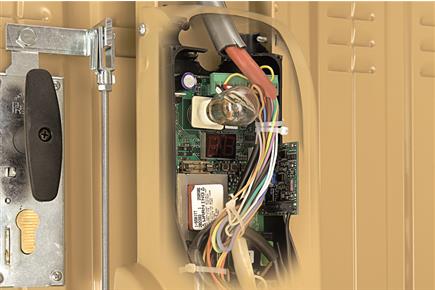

Centralina elettronica Centralina elettronica

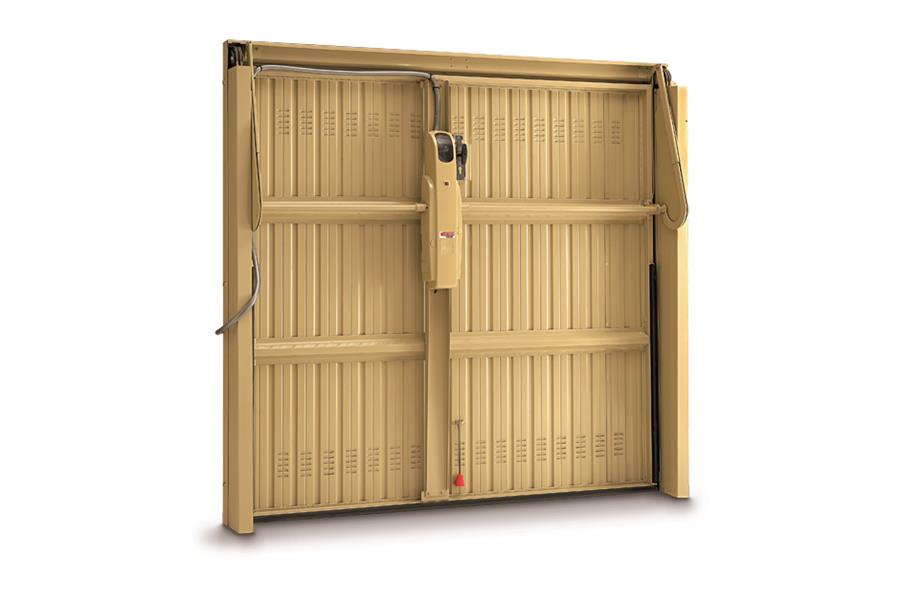

AUTOMATION ON BOARD 24V: DE NARDI by FAAC
(RESIDENTIAL AND CONDOMINIUM INTENSIVE USE)

The “GEARMOTORS DN 24” are installed exclusively on overhead doors De Nardi. Two leading companies that provide a service to the highest of quality and safety. The innovative automation device De Nardi is the thinking mind of the whole system: it manages the speeds to reduce the mechanical stress on the motors and gates; it segnals the archievement of the working cycles limit to require the maintenance; it also deals with the management of a long series of function, including: lock and unlock buttons, opening by a photocell, reversal of the motor controlled by the anti-crushing rib, photocells buffer batteries for emergency operation in the event of a power failure.

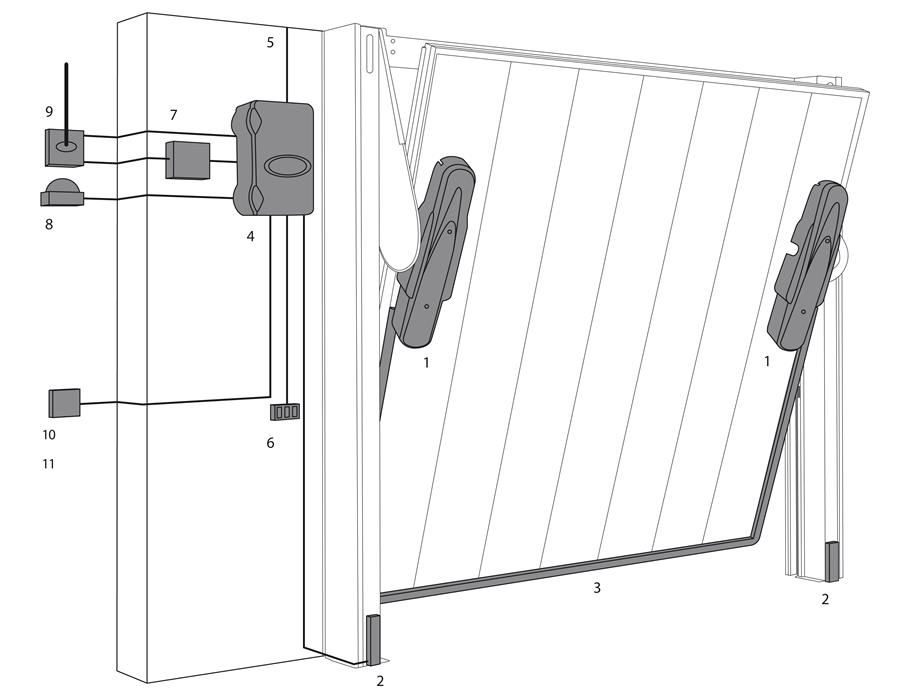

1 Motor block
2 Photocell
3 Mechanical rib
4 Automation device
5 Supply from breaker switch
6 Internal pushbutton
7 Radio receiver
8 Flashing light
9 Antenna
10 External key selector
11 Two-channel transmitter or four-channel transmitter

Wireless keypad digital combination, led wall flashing light, photocells, two-channel and four-photocells Wireless keypad digital combination, led wall flashing light, photocells, two-channel and four-photocells
Electronic control unit with built-in antenna and radio receiver Electronic control unit with built-in antenna and radio receiver
Engine carter Engine carter

AUTOMATION ON BOARD 230V: DE NARDI BY FAAC (SHIPBUILDING USE)

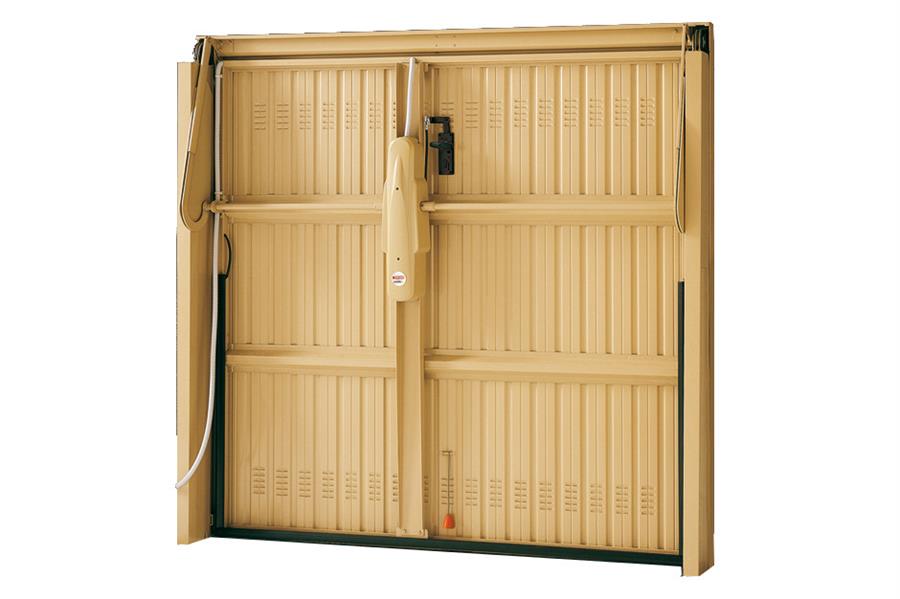

In the model Pratic, the overhead door is automated with one engine. Automation consists of one or two electromechanical locks with motor 230V A.C. and high resolution encoder, connocted to the overhead door by two telescopic arms and equipped with:
-limit switches for opening and closing
-internal and/or external emergency release (commanded from the lock) for the handling in case of absence of the mains voltage.
The automation is supplied wired for the devices to the side described, with junction box to fix to the wall on the right side (internal view) and complete with power cable “schuco” type.
The electronic control unit has a detection system of the stress profile and self regulation of engine delivered to the stress profile and self regulation of engine delivered to the engine during the cycle of opening and closing in order to limit the impact forces in compliance as provided by law.
It’s also possible the automatic timed closing and the regulation of the engine power.

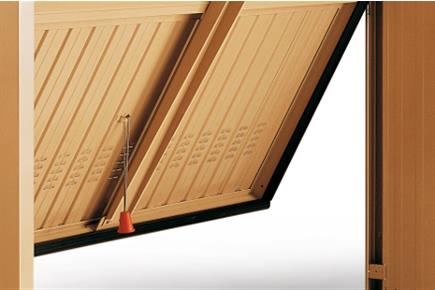

The mobile door is supplied with a bumper rubber to protection of the three sides in the model 12 and 16. The mobile door is supplied with a mechanical anti crushing rib to protection of the three sides in the model SPECIAL

Automation device on board, with courtesy light (max 25W) and button of opening/closing, equipped with various outputs for connecting peripherals such as:
- key selector
- photocells
- flashing light 230V
- external courtesy light (maximum power 250W, no neon)
- base for two-channel receiver radio
- mechanical anticrushing rib to protection of the three sides

Electronic control unit on board Electronic control unit on board

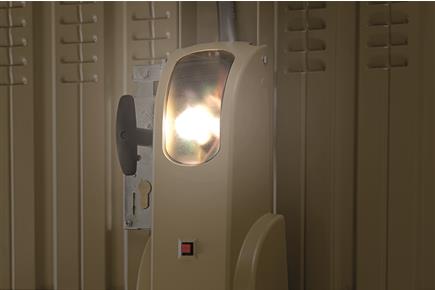

Courtesy light Courtesy light
Mechanical anticrushing rib or bumper rubber to protection on the three sides Mechanical anticrushing rib or bumper rubber to protection on the three sides

SET UP FOR MOTOR-DRIVE UNIT ON BOARD

The overhead doors De Nardi are designed for easy, effortless manual opening. However they may be automated; in this case they are prepared to receive a motor-drive unit with the insertion of reinforcements in the areas where the motor block and telescopic arms will be fixed.

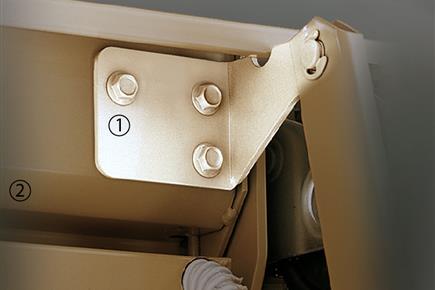

1 Support telescopic arm</br>2 Inside reinforcement top beam 1 Support telescopic arm
2 Inside reinforcement top beam

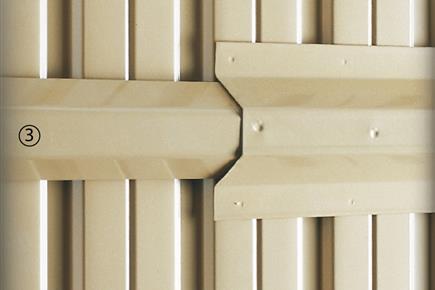

3 Internal reinforcement on the omega of the mantle for fixing motor support bracket 3 Internal reinforcement on the omega of the mantle for fixing motor support bracket

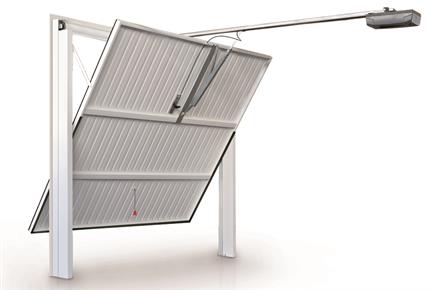

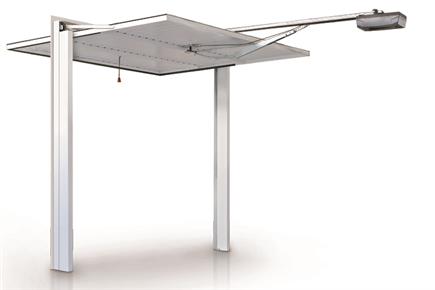

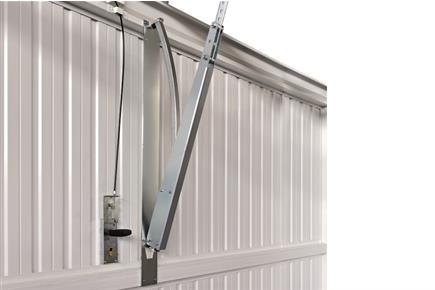

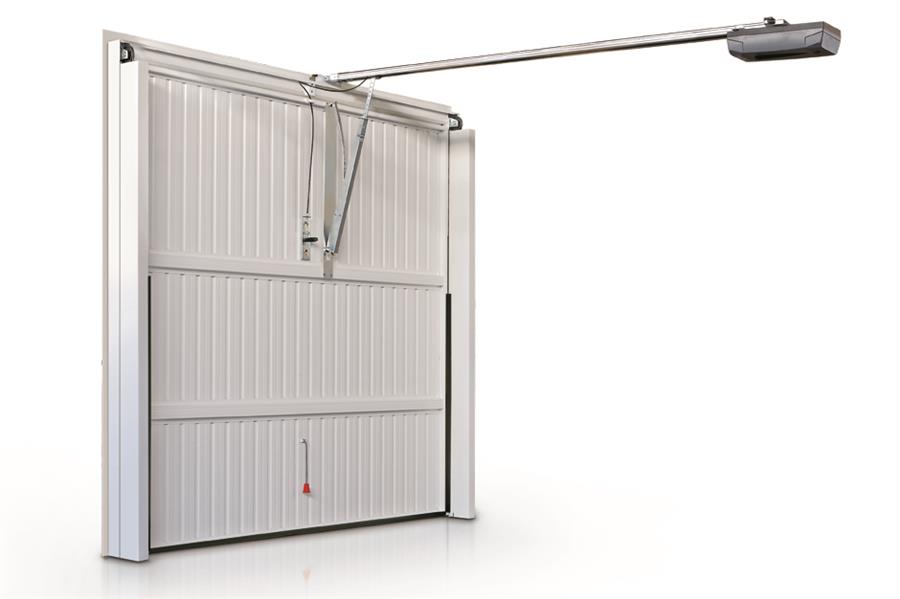

AUTOMATION IN TOW: DE NARDI by FAAC

The drive unit with chain drive is installed on the ceiling at the center of the door. The 24V gearmotor De Nardi, is commanded by an incorporated electronic control unit.

Operation of the automated tow for overhead door model Pratic 12-16

1 Monobloc motor with courtesy lamp 1 Monobloc motor with courtesy lamp
2 Characteristic of the curved adaptor arm</br>3 Release motor cord operated through the standard handle 2 Characteristic of the curved adaptor arm
3 Release motor cord operated through the standard handle

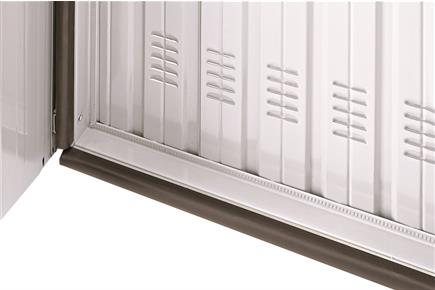

4 Shockproof rubber on three sides 4 Shockproof rubber on three sides

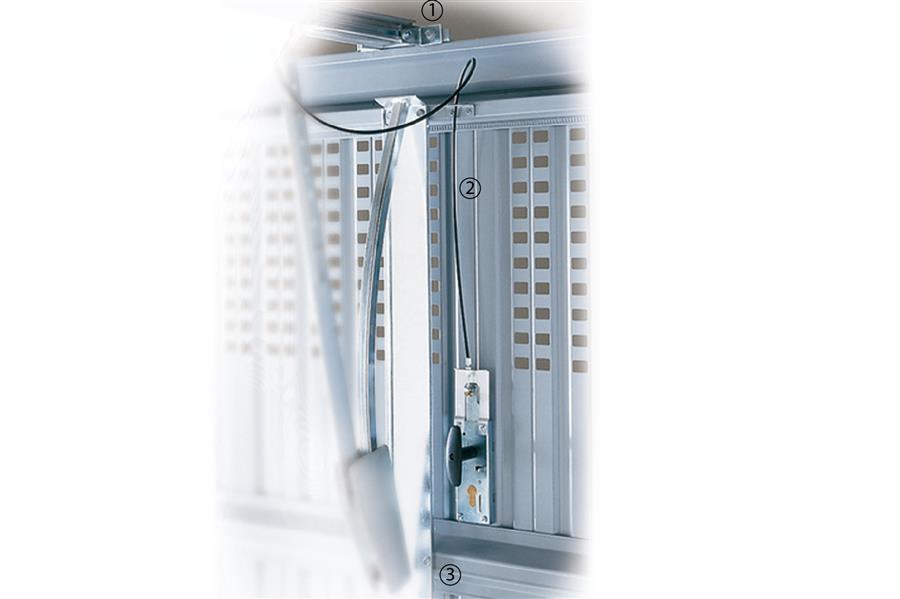

PREDISPOSITION TO AUTOMATION IN TOW

1 Angular for fixing guide</br>2 Reinforcement on the frame</br>3 Internal reinforcing on the central omega 1 Angular for fixing guide
2 Reinforcement on the frame
3 Internal reinforcing on the central omega
